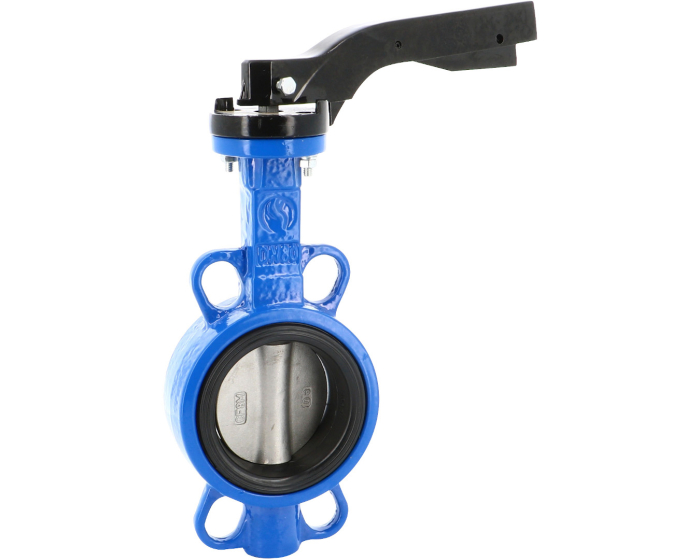

The 1123 series butterfly valve is a wafer-type valve with a ductile iron body, stainless steel disc and vulcanised EPDM seat. For cold or hot water, seawater, alcohol, milk of lime, mercury, alkaline substances, sodium hydroxide.
| Specification | Value |
|---|---|
| DN inches NPS | 1''1/2 |
| Option certificate 3.1 | Yes |
| DN metric | 40/49 |
| Construction standard | API 609 |
| CE risk category | III Module H |
| Type of paint | Epoxy |
| Paint coating thickness (µm) | 80.00 |
| EN face-to-face standard | EN 558 Series 20 |
| DIN face-to-face standard | DIN 3202 Part.3 Series K1 |
| ISO face-to-face standard | ISO 5752 Series 20 |
| Tightness test standard | API 598 |
| Type of seat | Vulcanized |
| Notch plate | Yes |
| Opening device | Handle |
| Application | Air conditioning / Heating |
| Shaft/stem matérial | Stainless steel AISI 416 |
| Lockable | Yes |
| Square, star (mm) | Square 9 mm |
| Torque (Nm) | 12 |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 33.0 |
| Fluid | Hot water / Cold water / Drinking water |
| Kv (m³/h) | 78.0 |
| Seat | EPDM |
| Body material | Ductile iron |
| Disc material | Stainless steel ASTM A351 CF8M |
| ISO pad 5211 | F05 |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| TS max (°C) | 110 |
| TS min (°C) | -15 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Through shaft | Yes |
| Warranty period | 5 years |
| CE | Yes |
| Handle material | Aluminium |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Ductile iron Concentric DN40 - 1''1/2 Handle | 1123040 | S1009016 |
€30.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN50 - 2'' Handle | 1123050 | S1009017 |
€30.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN65 - 2''1/2 Handle | 1123065 | S1009018 |
€36.60
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN80 - 3'' Handle | 1123080 | S1009019 |
€41.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Handle | 1123100 | S1009020 |
€59.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN100 - 4'' Gears | 1123102 | S1009021 |
€103.24
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Handle | 1123125 | S1009022 |
€83.27
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN125 - 5'' Gears | 1123127 | S1009023 |
€123.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Handle | 1123150 | S1009024 |
€103.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN150 - 6'' Gears | 1123152 | S1009025 |
€148.70
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Handle | 1123200 | S1009026 |
€175.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN200 - 8'' Gears | 1123202 | S1009027 |
€236.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Handle | 1123250 | S1009028 |
€312.67
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN250 - 10'' Gears | 1123252 | S1009029 |
€390.23
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Handle | 1123300 | S1009030 |
€442.76
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN300 - 12'' Gears | 1123302 | S1009031 |
€518.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN350 - 14'' Gears | 1123350 | S1009032 |
€740.29
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN400 - 16'' Gears | 1123400 | S1009033 |
€1,116.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN450 - 18'' Gears | 1123450 | S1009034 |
€1,483.50
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN500 - 20'' Gears | 1123500 | S1009035 |
€2,339.17
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric DN600 - 24'' Gears | 1123600 | S1009036 |
€3,311.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Gears DN700 - 28'' | 1123700 | S1009037 |
€8,027.04
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Gears DN800 - 32'' | 1123800 | S1009038 |
€10,041.61
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Gears DN900 - 36'' | 1123900 | S1009039 |
€14,060.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Ductile iron Concentric Gears DN1000 - 40'' | 1123990 | S1009040 |
€19,615.33
(excl. btw)
|
add to cart |
